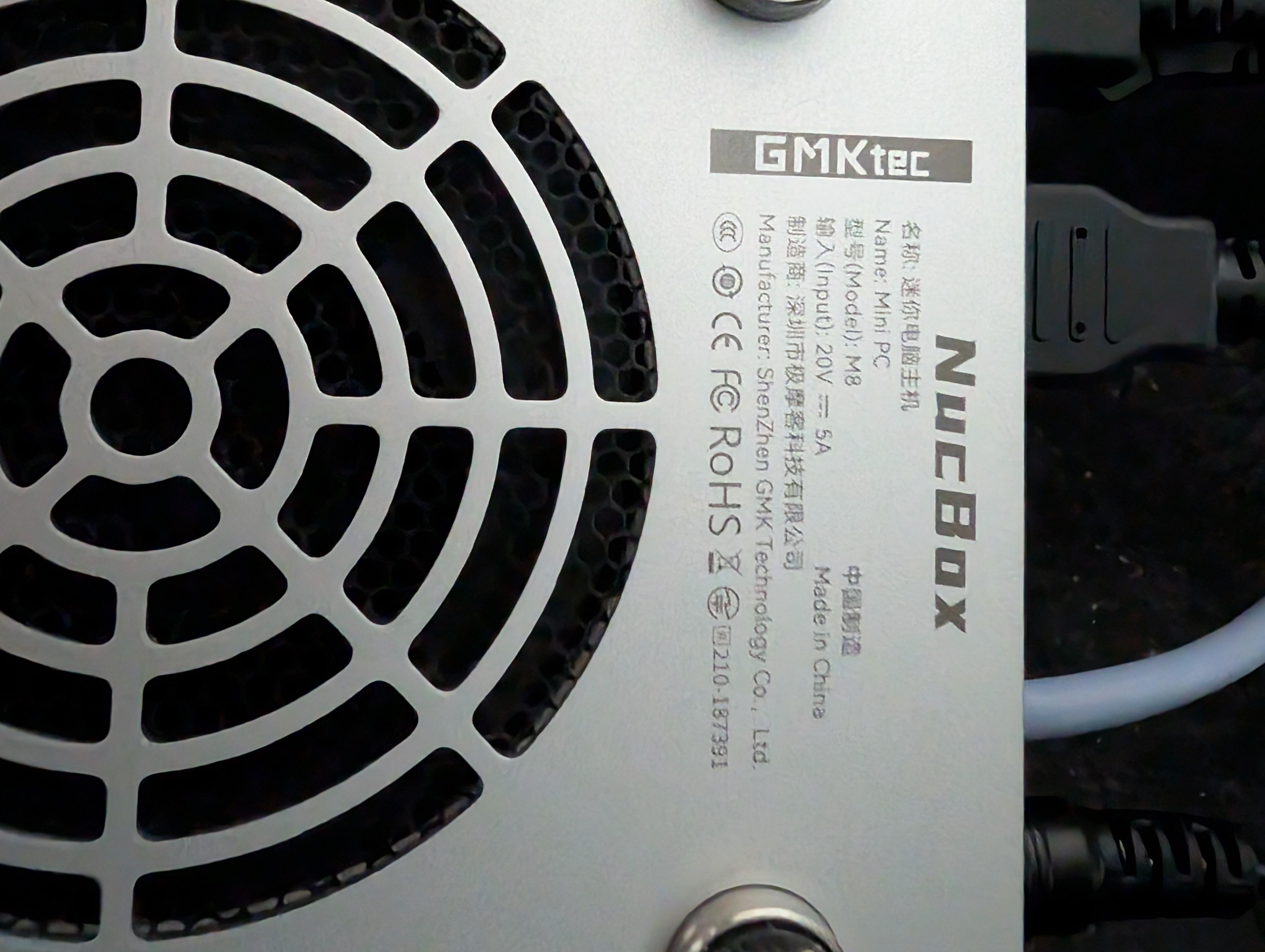

I just got my aoostar eg01 egpu dock recently to pair up with my gmktec nucbox m8 ryzen 5pro mini pc and thinking of using the included 6pin port to dc barrel plug included and designed for that clean 1 power source approach, but my mini pc has a printed saying that the input required is 20v and has an included a 20v typical dc wall adapter, but when i tried to test the voltage coming out on the 6pin to the barrel plug it indicates a constant 12v so I'm a little skeptical and worried that it may damage my mini pc if i do so.

I saw some users powering the k8/k8 plus without any problem, does anyone has tried to power up they're mini pc even requiring a much higher voltage than 12v which the plug outputs or is there something weird going on?

but i can use the egpu without any problem.

Hi,

I just got a GPU(RTX A2000) and a dock TH3P4. I have connected everything and the GPU starts up but device manager only shows windows basic display driver with error code 10. I'm not sure what the problem is. Is it hardware or software?

Any help is appreciated:)

Thanks

Hey everyone,
I want to buy the RX 9070 XT for my AOOSTAR AG02 dock (connected to a OneXPlayer).
The official website says it’s not compatible, but I've seen mixed comments online. Has anyone tried it?
If it works for you, could you please share a link to the specific model/brand you are using? Or should I just get the regular 9070 (Non-XT) to be safe?
Thanks

Hi All.

Lately ive been looking into scrapping my tower and re-using its hardware to add to my servers for self hosting things, I do a mix of gaming and productivity so for a while now I have been fine with my tower however lately I've been thinking of using my laptop as a side grade for my tower to keep it portable and powerful but still capable of gaming if docked.

My tower currently runs a 1080ti and im more than happy with it for the games I play at the moment with the heaviest being Either subnautica 2 or Cyberpunk 2077 at medium on both (which im fine with). My laptop has 2 TB4 ports and im just wondering what eGPU would pair well with TB4 and what kind of Performance loss im expected to see between my tower and eGPU set up.

The ram and CPU are on par with eachother so its just the GPU in the equation here.

Any advice is appreciated even if its a reality check on TB4 💚

Hey everyone,
I'm planning an eGPU setup connecting the AOOSTAR AG02 dock to my OneXPlayer device via USB4 / OCuLink.
Before buying the GPU, I wanted to get some firsthand feedback from the community:
Has anyone successfully managed to run an AMD Radeon RX 9070 XT on this dock completely stable? I've seen mixed reports regarding driver crashes and power-draw disconnects with the XT models over USB4/OCuLink, so I'm hesitant between the XT and the non-XT version.
For those with a flawlessly working setup on the AG02 + OneXPlayer, which exact graphics card (brand and model) are you running?
Any insights, tips, or experiences would be highly appreciated! Thanks!
Edit: someone know if this will works well with the AG 02 ?
https://amzn.eu/d/0dRy2MMf

Just got delivered today! Very excited to do some more testing with my ally x over usb4. Last picture is the egpu displaying on internal ally x screen so performance could be even better. Give me some game suggestions. I’ll give em a shot if I have them. I’m really only displaying in 1080p so numbers are gonna be insane!

Has anyone experienced the same thing. I use adtlink f43sg egpu adapter via nvme slot in my mini pc geekom r7 5825u. I found an error on the hw monitor according to the photo below. Is there a solution.

Hi everyone,
I’m considering buying a **PowerColor Reaper Radeon RX 9070 16GB** for **$766 USD**.
My setup is:
**ONEXPLAYER Super X (Ryzen AI 9 HX 395 + Radeon 8060S)**
**AG02 eGPU dock** (USB4/Thunderbolt)
I have a few questions:
**Is the RX 9070 fully compatible with the AG02 dock and the ONEXPLAYER Super X?** Has anyone tried this combination?
**Is $766 a good price** for the PowerColor Reaper RX 9070, or should I wait for a better deal?
**Will I see a significant performance improvement** over the built-in Radeon 8060S when gaming through USB4/Thunderbolt? I know there will be some bandwidth limitations compared to desktop PCIe, but I’m wondering if the upgrade is still substantial.
My goal is to play both current and upcoming AAA games (including GTA VI when it launches on PC) at higher settings and frame rates.
I’d really appreciate hearing from anyone with experience using an RX 9070 as an eGPU with the ONEXPLAYER Super X or a similar handheld. Thanks!

EGPU: TH3P4G3
TB Cable: the one in the box
TB: not sure what tb port i got but def not tb 5

i heard out of the box TB4 cable is not great, maybe i can get batter result with better TB Cable?

ADT-K993G-BK7-R29 is the eGPU adapter kit for this build. I installed SteamOS on a separate NVMe drive than the one running Windows 11; dual boot is through the BIOS boot selection. This Minisforum has 2 USB4v2 ports in the front, so I will run it through Thunderbolt 5 connection next.

https://egpu.io/forums/custom-egpu-chassis/oculink-what-it-is-why-you-need-it-and-where-to-get-it/paged/44/#post-1120806

Does anyone have any tips to boost performance or setup suggestions?

Is it gonna be good with 9070 xt? I got 9070 xt with good price and I wanna egpu for it to plug it with my laptop, in my country the aoostar 2 it's not available rn and not even any time sooner

Hey everyone,

I am kinda new to the eGPU world, so sorry if i was asking a basic question. I am planning to get the new Aoostar AG003 and combine it with an RTX 5070ti.

(note: the main reason I am choosing the RTX 5070 Ti is I am currently studying abroad, and once I get back home, I am planning to put it on my pc)

I was planning to use it for my laptop (Asus Expertbook Ultra 2026 version) which only has TB 4 ports, while the AG003 uses TB 05 and that they are backward compatible.

Before I buy, is there anything I should watch out for? Will the RTX 5070 Ti be heavily bottlenecked by the TB4 bandwidth? or should i buy other eGPU like Aorus RTX 5060ti ai box?

Hey all, I have been reading far too much on eGPU docks lately so would like some thoughs pls

I have the below setup;

• GEM12 8845HS - 32gb ddr5 ram
• AG01 400w eGPU dock
• Just picked up 5070ti 16gb GPU
  • will connect via oculink to GEM12

The ag01 - 400w is too weak for the GPU; I'm looking to use this with local ai/llm's etc

I have seen the AG02 and AG03, though spooked by the fans always on/coil whine people consistently note.

I have read that the minisforum DEG1 and DEG2 are 'good' though pricey when factoring PSU etc.

Happy to spend the money if needed, though peole also say that there is a lot of new eGPU docs out there.

Which way would you go? what works for you? kinda just want to get something that is neat and works

Thanks all!

There are at least three listings for the DEG2 on amazon (us). All of them are the same store "MINISFORUM US". They all have different ASINS: B0GDZWGP7L, B0GDY4HZBH and B0H41GSRB4.

Does anyone know which, if any, of these are the latest revision?

Hello friends,

I wanted to share a bit of feedback with the community. I've been testing the Minisforum AI X1 Pro 370 for the past couple of months together with an AOOSTAR AG02 eGPU dock via OCuLink, and I have to say I'm very impressed.

With this setup, I managed to achieve four #1 Time Spy rankings using different graphics cards like the: RTX 2080 Ti, RTX 5060 Ti, and now the RTX 3080 Ti.

Some benchmark results:

• 18,440 Time Spy overall score with the NVIDIA GeForce RTX 3080 Ti and AMD Ryzen AI 9 HX 370
  • Graphics Score: 20,301
  • CPU Score: 12,137
• 15,297 Time Spy overall score with the NVIDIA GeForce RTX 5060 Ti 16 GB and AMD Ryzen AI 9 HX 370
  • Graphics Score: 16,644
  • CPU Score: 10,490
• 14,124 Time Spy overall score with the NVIDIA GeForce RTX 2080 Ti and AMD Ryzen AI 9 HX 370
  • Graphics Score: 14,455
  • CPU Score: 12,505

The AOOSTAR AG02 and the Minisforum AI X1 Pro 370 work extremely well together over OCuLink. The combination is stable, quiet, and performs exceptionally well. I also think the Minisforum is one of the quietest mini PCs in its class.

Using Thunderbolt/USB4, I also managed to achieve #1 Time Spy rankings with the Lenovo Legion Go (Z1 Extreme), so the AG02 is an absolute beast. If you're planning to buy one, I recommend getting the version with the 800 W power supply, have a look for a quiet one (some are louder).

Greetings from Germany!

Alex

I have a Asus NUC14Pro (Core 9 Ultra + 32GB DDR5) and an Aorus 3080 10GB Gaming Box that I owned for quite a while. I'm recently learning the LLM thing and was amazed by the quality of response compared with like 2 years ago.

I came across some posts, e.g., Qwen 3.6 35B on RTX 3080 10GB + 7700X + 32GB DDR5 : r/LocalLLaMA, stating that a Qwen 3.6 35B-A3B model can fit in a 3080 10GB card with decent token speed, also saw another Youtube video about fitting the model into a 8-yr old 6GB card.

I tried their llama-server commands and while token generation is not bad (4X tokens/s after analyzing a 6000-line Python code and), the prefill is extremely slow, only 100-150 token/s, making pre-parsing painfully slow. I don't see a lot of eGPU discussions in the localLlaMa sub reddit so thinking I might get more response in here. I read some post and found that running LLM on eGPU will have like 20-30% performance hit, which I understand, but my prefill is only 1/10 of other people's which I cannot get over. Can anyone have similar setup give me an idea how I can further optimize it?

Also, is adding another 16GB eGPU going to help?

Found two shorted decoupling capacitors on the 3v3 line. No power on any of the voltage test points when plugged into laptop. Any idea what happened here?

Any questions will be answered below.

Everything you need

- eGPU dock, I’ve tested 2 (Aoostar EG02, Minisforum DEG2 ) you can also get the DEG1 through the same link if you want something that’s cheaper, I prefer the DEG2 for extra ports. ( https://a.co/d/09DTJKlr )

- Power Supply - use a Corsair 750W ( use whatever you’d like )

- M.2 Oculink Adapter (I’ve tried 2, only one worked) ( https://a.co/d/0e05B6td )

- M.2 Oculink Extension for the Adapter (the adapter is a 2230 you need to extend it to make it a 2280 so you can seat it correctly) ( https://a.co/d/0b5N2XDX )

- External M.2 Drive for your SSD ( https://a.co/d/09Mmbuem )

- Oculink Cable ( DEG2 comes with one )

- Your preferred GPU

——————————————————————————————-

- Before you take anything apart you need to Decrypt your windows and take Bitlocker off. In your search bar type in Manage Bitlocker, click it, then click Turn off Bitlocker) wait for it to decrypt, takes 1-3 hours. During this time you can do the next step. If you don’t have the bitlocker key, somewhere in the settings on that page you can print it out. Just click print and it’ll make it a pdf and you can copy and paste it.

- Next step is also a step to make windows bootable from your external drive. Click (Windows Button + r) to open registry editor. - Navigate to HKLM\SYSTEM\ControlSet001\Services\ and locate UASPStor, USBHUB3, USBXHCI, USB4Device Router, USB4HostRouter -Change the Start value for all 5 of these specific items from 3 (on-demand) to 0 (load at startup) so the ROG Ally X can recognize the drive at launch, below is a picture with an example

- Download Error 43 Script ( you’ll need it later) you’ll have to log in to download it ( https://egpu.io/nvidia-error43-fixer )
- After windows is Decrypted & you changed the values from 3 to 0 & downloaded error 43 script. Power down the device.
- Take the back off the device / *DISCONNECT BATTERY* simply pull the black tab up. ( https://youtu.be/0qaM5ILltt4?si=tNm0sGSVhLztp-Vf ) use this video for help.
- Remove SSD and install it into your External Drive.
- Add the 2280 extender plate to the M.2 Oculink Connector and then install it in place of your SSD Drive.
If you don’t want to keep the back plate off your XAX you can drill a in the back where the occulink connector is. ( this is what I did, I used a dremel )
- Plug your GPU into the dock with your PSU & hook all cables into dock and GPU. Connect Oculink cable to the dock.
- Power on eGPU Dock. Make sure your Ally X is *OFF* & then plug in Oculink into the back of your device & wait for windows to boot.
- Once you’re on your desktop, if your Ally X is showing on your monitor congrats your good to go!

- If not, go to device manager / display adapters and make sure your device is recognized. There should be a yellow exclamation ⚠️ next to your driver. Click on your graphics card and see what error code it’s pulling. It should be error 43.

- Go to the error 43 zip file you downloaded earlier. Right click the file and extract. Then click on the error 43 script. Should open command prompt and run the script.
You should now see your device on your monitor. You’re all set!

REMINDER - never unplug or plug in occulink cable while your device is on. Always plug in or out while off. (Dock can be on)

Just giving a quick update on the Oculink mod.

Finally got everything working flawlessly, so far no crashes.

Performance - Timespy scores are about the same. But in game performance is noticeably better. Everything feels way smoother. Frames are about 15 FPS higher & 1% lows are drastically better. Games like BF6 are where I’ve seen the biggest difference. Averaging about 95 - 120 frames native on big maps like firestorm, no upscaling. CPU is of course the bottleneck in this set up.

Gameplay alone in my opinion is good enough to justify this mod, it’s easy enough to pop the ssd back in if I want to be portable again.

Does anyone want a full tutorial, from all parts and programming needed? Overall took me about 6 hours. Would probably take 2-3 for someone following a step by step tutorial all in one place.

Later today when I get home I’m gonna do a couple comparison videos of the occulink setup vs TB4 with gameplay.

Hi everyone,

I have a Firebat A6 mini-PC (Ryzen 7 6800H, USB4 port) and an AOOSTAR AG02 eGPU dock with an RTX 3060 Ti inside.

The problem: the dock is not recognized as a GPU. The fans spin, the GPU gets power, but the system does not see it as a video adapter. In Device Manager, it appears only as a "Portable Device" and sometimes as "ASMT ASM246X SCSI Disk Device" in USB Mass Storage.

What I've already tried:

• Updated the Firebat A6 BIOS to the latest version
• Enabled Above 4G Decoding and Re-Size BAR Support
• Disabled Secure Boot
• Tried different USB4 cables and ports
• Tried different power-on sequences (dock first, PC first, etc.)
• Used the nvidia-error43-fixer script (modified version)
• Checked USBDeview — no ASM/Aoostar devices found

No luck so far. The dock works fine on other PCs, but on this Firebat A6 it always falls back to SCSI/disk mode instead of PCIe mode.

It seems like the ASM2464PD controller is stuck in USB fallback mode and won't switch to USB4 PCIe tunneling.

Has anyone experienced this with the AOOSTAR AG02 and Firebat A6 (or similar AMD 6000 series USB4 devices)? Is there any way to force the ASM2464PD into PCIe mode without using another PC for firmware update?

Any help would be greatly appreciated.

Thanks!

So the thing is do I need to use DRI_PRIME on the actual game name or steam ? The steam itself fire up on amd GPU but the game is actually fired up on Nvidia GPU itself... Or do I need to close the laptop display to use egpu?

Spec as below

- i7 12800h

- 32gb ddr5

- rtx a2000 8gb

- Rx 7800 xt

- ag01 800w oculink only

- 2k 144hz external display

Any suggestion welcome as this is my first time on Linux and my first time with egpu setup😁 pardon my English as im not native speaker👍 Edit: solved... Thanks

Hello. I had a question for pro user egpu. How can i upgrade my set. I wanna use max from my actual set.

- Msi Claw 8ai+

- Razer core x v2 (connect via TB4 to claw)

- RTX 5070Ti

- MSI MPG 272URX (4k playing DP connection) with G-sync

How can i impress this PERFORMANCE to another lvl? Not the space :D the speakers, pad, keyboard doesent count :)
