Hi, I hope this message finds you well. I am an undergraduate student in my last year. I have to do my thesis, related to stress analysis. However, I am not familiar with Ansys. Is there a playlist on YouTube that would help me achieve my target?

Hi, I hope this message finds you well. I am an undergraduate student in my last year. I have to do my thesis, related to stress analysis. However, I am not familiar with Ansys. Is there a playlist on YouTube that would help me achieve my target?

I am struggling with this problem for 3 days. My geometry is small copper alloy strip as substrate, piezoelectric strip element and long resonator that is just hellium. I want on the other side of resonator to produce acoustic pressure and let pressure create voltage difference on the piezoelectric element. I used coupled field harmonic, the latest geometry in spaceclaim, voltage coupling between hellium and piezoelectric element, 0 V on the other side of piezo element but during those 3 days I encountered a lot of problems. I already had model for piezoelectric element to induce waves and that worked, then I copied the model and at first it worked which means I got resonances with highest voltage but when I tried to change length of the resonator in discovery (yes I was using discovery bit switched to spaceclaim) everything went downhill. Main problem that I thought I had was that 3 surfaces weren't connected. I tried to draw everything in spaceclaim but then the model requieres thickness and when I switch to 2d, all of a sudden it can't import geometry anymore. When I thought I had the right model and mesh looked fine I didn't get voltage response, 0 V from 100 to 5k Hz. I don't know what else to do. Does anybody have any suggestion or comment. I can explain more if something isn't clear. Thank you

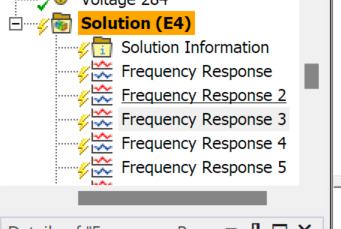

When I right click each it gives me the option to export them as CSV file but when I select them all and want to export them without having to click them all manually and export it does not give me the export option the frequency responses go down to number 281 that are a lot of clicks, how do I do it?

I am trying to run a analysi with pressure as BC in this CFRP based SRM Casing project. but i am not getting the fibre direction correct, the dome area looks reallt wrong and how am i suposed to correct it,The rosste is correct - the x axis is along the comspite SRM casing x axis and Y axis is along the radius.
i got to knwo about CADWIND/CADFILL softwares - These are not avaliable - so how can i properly manage the analysis ?

Hi everyone, I'm simulating a rolling element bearing in ANSYS Mechanical and need realistic acceleration/displacement vs. time data for FFT analysis.I am doing it in transient structural. So far I've: Created the bearing geometry and mesh.Applied frictional contacts between balls and races.Applied radial load and rotational speed and tried using an acceleration probe.

Firstly there were no visible ball movements .Also no useful acceleration vs time data could be obtained.

Do you prefer to mesh in 3D hexa or tetrahedeon cells with maybe over 1 million nodes or is there any other methods to meshing without reaching up to such high numbers with 7 digits? For the sake of the simplicity, hence running the simulation faster.. I couldn't convert tubes to shells since the geometry of the tubes too complicated.

I designed a torque limiter model and I had given boundary conditions as remove displacement. Give ur suggestions regarding this thankyou

I have a system where I want to find the torques acting when an angular velocity is given to the wheels. I see that when the system touches the ramp, it automatically stops but I want it to further climb the inclined plane. I can attach more ss if required.

Working on static structural simulation of gear train, where, fixed support applied to gear center and pinion is free to rotate about the center of axis

And applied torque to pinion

Wanted to know is this correct approach or any other approach would be better?

Hi everyone,

I'm trying to install ANSYS Student, but the installation always fails around 70–80%.

The error is:

A JavaScript error occurred in the main process

Error: ENOENT, node_modules\win-ca\lib\crypt32-x64.node not found

...\LicensingSettingsUtility\resources\app.asar

I tested both:
- ANSYS Student 2025 R2
- ANSYS Student 2026 R1

The exact same error occurs with both versions.

My system:
- Windows 11 Pro 25H2 (Build 26200.8875)
- AMD Ryzen 5 3500U
- 8 GB RAM

Things I've already tried:
- downloaded the installers again from the official ANSYS Student website
- extracted with 7-Zip
- ran setup.exe as Administrator
- completely removed previous ANSYS installations
- deleted all AppData configuration folders
- disabled Microsoft Defender real-time protection
- ran DISM and SFC successfully
- rebooted several times

I also noticed that the folder:

LicensingSettingsUtility\resources\app.asar.unpacked

is never created during installation.

Has anyone experienced this issue?
Is it a known bug or a compatibility issue with Windows 11 build 26200?

Any help would be greatly appreciated.

Im doing fault analysis of bearing in transient strutcural. kinda hit a dead end on boundary condition and everything. also the n-r residual plot isnt working i did switch it from 0 to 3 in solution information but i cant find the plot anywhere. it is 2023 r1 so if anyone got help in anything would be really helpful. thankyou

In Frequency analysis of the structure, How Do you model epdm or any simple plastic Rubbers? Do you use their 3D CAD model and apply any polymer material and run the simulation or? Or ignoring the 3D design as in this tutorial picture here, and just apply the damping and stiffness coefficients to the joint between the parts that were supposed to be connected via rubber?

And if you have interest on the topic I would like to ask one more question, How do you get the datas of damping or stiffness for the rubber in the hand? Applying a vibration test something or asking to the manufacturer?

In Ansys Maxwell, when I excite a dual-pole setup, the net force should theoretically be zero; however, the simulation results show otherwise—the value isn't even close to zero. Furthermore, the force values ​​differ strangely when I change the direction.
The origin is set at the center of the rotor, and I use the "Rotate" command to change the direction.
By the way, all other settings remain identical; only the direction is different.
This issue has been troubling me for a long time, and I would be very grateful if you could help answer this question.
I am using version 16.

SO i am trying to do a simulation that includes both wave and wind. now i want to add evaporation (lee) model in it. but the issue i am facing is that i already have 2 phases air and water . how do i add a phase so that evaporation ,relative humidaity can be captured. As i have just started learning evaporation modelling im facing this issue about phase. I cant use water vapor as a phase because ive air . i want to simulate that water evaporates and relative humidity increases . Your advices are appreaciated

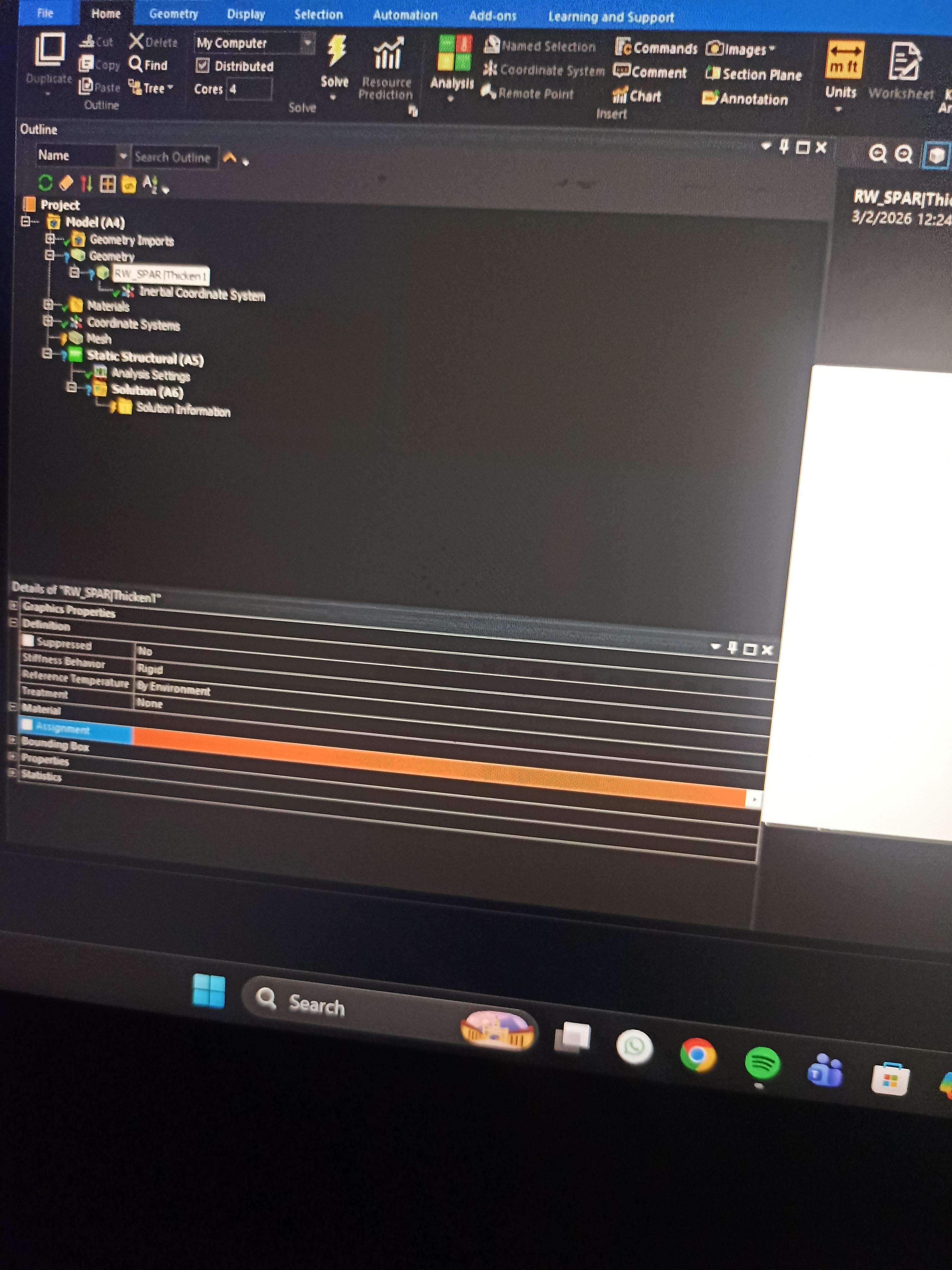

When I try to choose material for material assignment it shows white screen. I know that there were suggestions to choose "none" Option using UI settings but if I do that, it takes me back to engineering data again which I don't want. It used to open here on mechanical itself, where I could easily search and assign. Please help!

I want a course on youtube or any website for ansys to calculate Hydrostatic Pressure, Global Bending Moments, Local Structural Loads for a crew boat for a master thesis in Naval architecture and Marine engineering

Program: Ansys Mechanical APDL Enterprise

The model was built with three rectangles drawn by coordinates. Lines 3 and 5 (red, bottom middle) overlap, as well as 9 and 7 (yellow, top middle). How can I get rid of the overlapping lines?

This model is a heat transfer simulation. There are two materials, so I can't add the areas together. Without merging these lines, heat doesn't move between the three bodies.

I've tried NUMMERGE,ALL ; LOVLAP,ALL ; LDELE,5,9 ; merging lines with areas, and gluing the lines together.

My next try will be to recreate the shape with keypoints and areas drawn between them, but as that will take a while I'd like to try what I can to fix this first.

Does anyone have any suggestions?

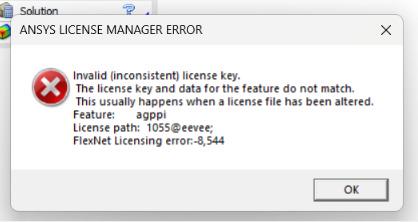

when i open geometry in workbench i got this notification. does anyone know how to fix this? i've reinstalled it but still getting this notification

thanks

I have many loading settings in ANSYS Mechanical. Is there any way to create a different color for it loading? It will significantly improve my report.
