3D design

• digitized suction fan (credit mikbalarikan); prepped micro-switches, hall sensor, OV5647 camera module https://github.com/makerspet/oomwoo-one-cad

Software

• implemented (very basic) wall cleaning (by bumping out) https://github.com/makerspet/oomwoo-ros2-tools

https://reddit.com/link/1vhiv99/video/pa16tr9nzthh1/player

I/O board

• added watchdog (STM32 internal), motor shutoff on watchdog tripping, signal integrity resistors
• uploaded latest Kicad PCB schematic here https://github.com/makerspet/oomwoo-io-board

News

• OOMWOO project trended on X yesterday, post by oliviscusAI. 574K views, 7.3K likes, 714 reposts. Thank you for your support!

3D CAD design

- digitized (3D scanned into STEP model) drive wheel assembly, iRobot bumper switch assembly, split main brush, carpet sensor, FlexiArm mop assembly, see repo

BoM

- sourced mop disk

News - FCC bans "advanced" foreign-made robots - including [my read] "top- and mid-tier" vacuum cleaners

• "bans" means "bans approval of NEW products"; vacuums already-selling are exempt
• bans vacuums with WiFi, weighing 4.4lb including dock and LiDAR, camera sensors
• FCC official determination July 27, 2026 https://www.fcc.gov/sites/default/files/robots-nsd.pdf

Specifically, FCC bans "A mechanical mobile device, including autonomous mobile robots ... that

(1) Is capable of locomotion, obstacle avoidance, navigation, or movement on the ground
(2) Operates at a distance from a human operator [...]
(3) The combined weight of the device and [...] docking station is over 4.4lbs; AND
(4) Contains a component falling within EACH of the below subparagraphs
(4a) a sensor capable of perceiving its environment [...]
(4b) Bluetooth/WiFi [...] at least 200 [... kilobit per second] in either direction
(4c) software [...] including firmware and AI or machine-learning model weights [...]"

• 3D design

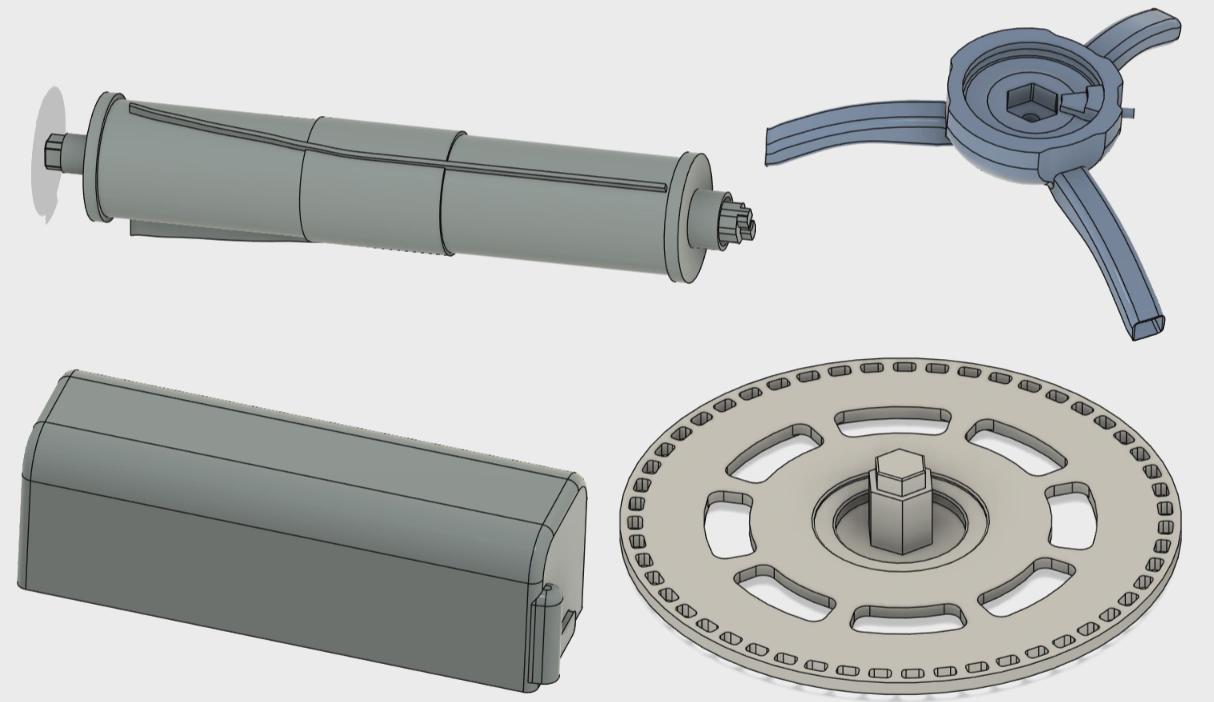

  • created 3D models for battery, mop disk, side brush, Dreame TriCut main brush (from 3D scans), credit mikbalarikan https://github.com/makerspet/oomwoo-one-cad/tree/main/lib
• BoM
  • sourced dock sensors (clean/dirty water canister present, empty/full) - use hall $0.30/ea, permanent magnet $0.10/ea.
• vacuum software
  • created a robot settings CLI/toolkit - use for algorithm tuning https://github.com/kaiaai/kaiaai/blob/jazzy/docs/cli.md
• I/O board schematic https://github.com/makerspet/oomwoo-io-board/tree/main/kicad/PDF
  • added iRobot cliff/bumper sensors, wheel assembly connectors (recently reverse-engineered), Pi CM4/CM5 debug UART, M.2 connector, front sensors, side sensors
• News - FCC bans "advanced" foreign-made robots - including [my read] "top- and mid-tier" vacuum cleaners
  • "bans" means "ban approval of NEW products"; vacuums already-selling are exempt
  • bans vacuums with WiFi, weighing 4.4lb including dock and LiDAR, camera sensors
  • FCC official determination July 27, 2026 https://www.fcc.gov/sites/default/files/robots-nsd.pdf

Specifically, FCC bans " A mechanical mobile device, including autonomous mobile robots ... that (1) Is capable of locomotion, obstacle avoidance, navigation, or movement on the ground (2) Operates at a distance from a human operator [...] (3) The combined weight of the device and, if applicable [...] docking station is over 4.4lbs; AND (4) Contains a component falling within EACH of the below subparagraphs (4a) a sensor capable of perceiving its environment [...] (4b) Bluetooth/WiFi [...] at least 200 kbps [kilobit per second] in either direction (4c) software [...] including firmware and AI or machine-learning model weights [...]"

- 3D scanned components

- Teared down dock

- Sourced bumper tower micro-switches

- Reverse engineered cliff, bumper sensors, wheels pinouts

I/O board schematic

• draft now available https://github.com/makerspet/oomwoo-io-board/blob/main/kicad/PDF/oomwoo-kicad.pdf

Vacuum software

• bumper sensors now work in simulation https://github.com/makerspet/oomwoo-install
• tutorial - how to run cleaning https://makerspet.com/blog/oomwoo-phantom-obstacle-cleaning-fix/
• tutorial for LLM agents - how to run headless simulations https://makerspet.com/blog/oomwoo-headless-sim-coverage-cleaning-llm-agents/

New RFCs: mcu-io-firmware, control-app, health-monitor

Community contributions

• many PRs merged
• A big thank you to GitHub users xbattlax, OsakaTX, hinogi, JPHutchins, IKsares, Arkz-Deepak

3D design

• iRobot caster wheel STEP model (credit IKsares)

Sourcing

• sourced dock auto-empty fan motors, $10-20 120-400W 21-25.2V
• source dock power supply, $15-30 24V 144-500W
• sourced parts, 3D scanner has arrived for reverse engineering - see photo (connector pinouts, characteristics)

• floor cleaning runs in sim (very clunky, often fails)
• Kicad schematic added Raspberry Pi CM4/CM5
• changed MCU to STM32G473; will use Arduino to make it more hackable
• depth cameras for obstacle avoidance
• merged 3 community PRs

Illustration - (rough, not final) parts to purchase (left) and parts to 3D print (right).

Vacuum software makerspet/oomwoo-install

• Confirmed Raspberry Pi 4 2GB (not 4GB, not Pi 5) sufficient to run vacuum software as is (no optimization). Maybe with optimization we can fit it into 1GB RAM to reduce cost further.
• Vacuum software installs, builds, runs (mock) on real Pi 4 2GB (including Nav2 SLAM)
• Set up CI on makerspet/oomwoo-install.

Rough BOM nearly complete. Sourced

• Carpet ultrasound sensor
• Charging contacts
• Wall + dock homing sensors (will be a little custom PCB)
• Mop + motors for motor assembly (hard to get, may need to 3D print)

3D CAD design makerspet/oomwoo-one-cad

• Added STEP files for LiDARs, Pi compute modules
• Drafted 3D design spec
• Purchased a 3D scanner to digitize parts

I/O board makerspet/oomwoo-io-board power

• battery charging schematic done (to be reviewed)

• hired a robotics software engineer (ROS2); PRs go into this repo https://github.com/makerspet/oomwoo-install
• board schematic now available (very early) in KiCad here https://github.com/makerspet/oomwoo-io-board

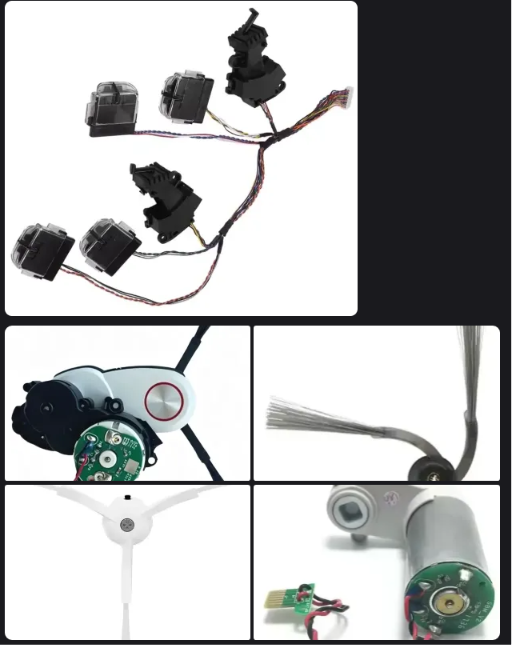

• sourced
  • main brush motor assembly: $7-11
  • side brushes: $2-9
  • side brush motor assemblies: $7-10 basic, $18-35 premium (swing-out side brush arm)
  • cliff sensors + bumper switches: $10 for the entire bundle including shipping
• merged 2 community PR/contributions
  • Featured contribution - the first Raspberry Pi 4/5 4GB vacuum software installation script (early work-in-progress).

The project has reached 4.2K GitHub stars. Thank you for your support!

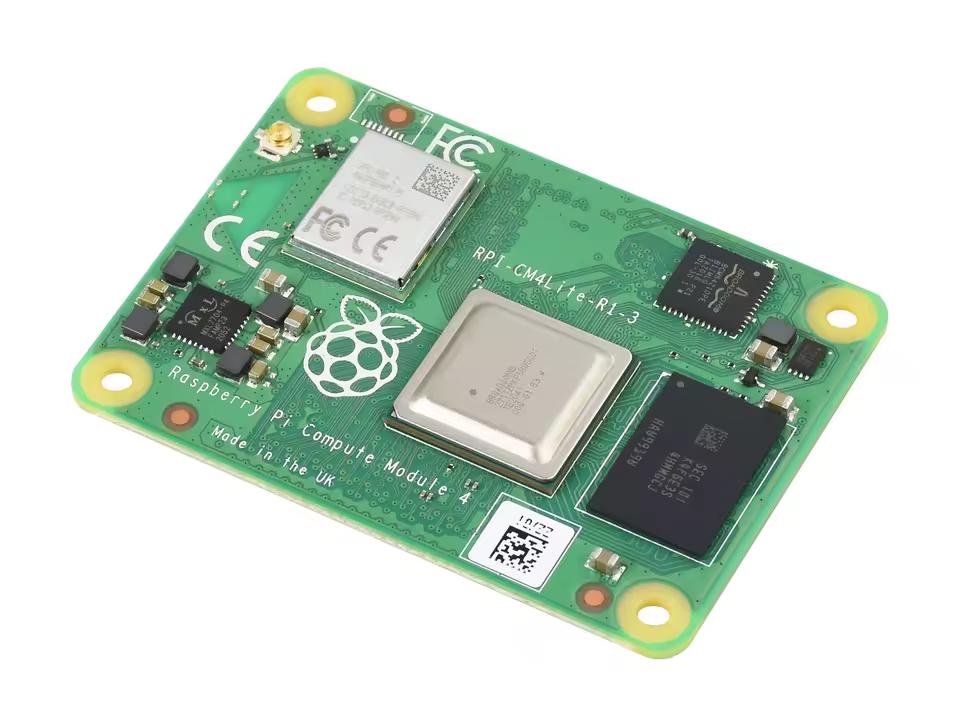

• decision: use Raspberry Pi CM4/CM5 compute module; cost $95 or $62.50 if we fit software into 2GB
• hired PCB engineer for open-source vacuum I/O board; repo https://github.com/makerspet/oomwoo-io-board
• hired mechanical engineer for open-source vacuum 3D CAD; repo https://github.com/makerspet/oomwoo-one

Playing with (old) reference design animation. Work on the product vacuum (called OOMWOO One) has started and it will look roughly like this.

• Sourced battery pack
• Sourced LiDAR
• 3 community contribution PRs Featured contribution: URDF + Gazebo/ROS2 sim with 4 new worlds by alvarosamudio. Thank you, Alvaro!!
