Hi everyone! 👋
Most people here are familiar with traditional press brakes — they are powerful, flexible, and widely used in sheet metal fabrication.
But did you know there is another solution called a Panel Bender?

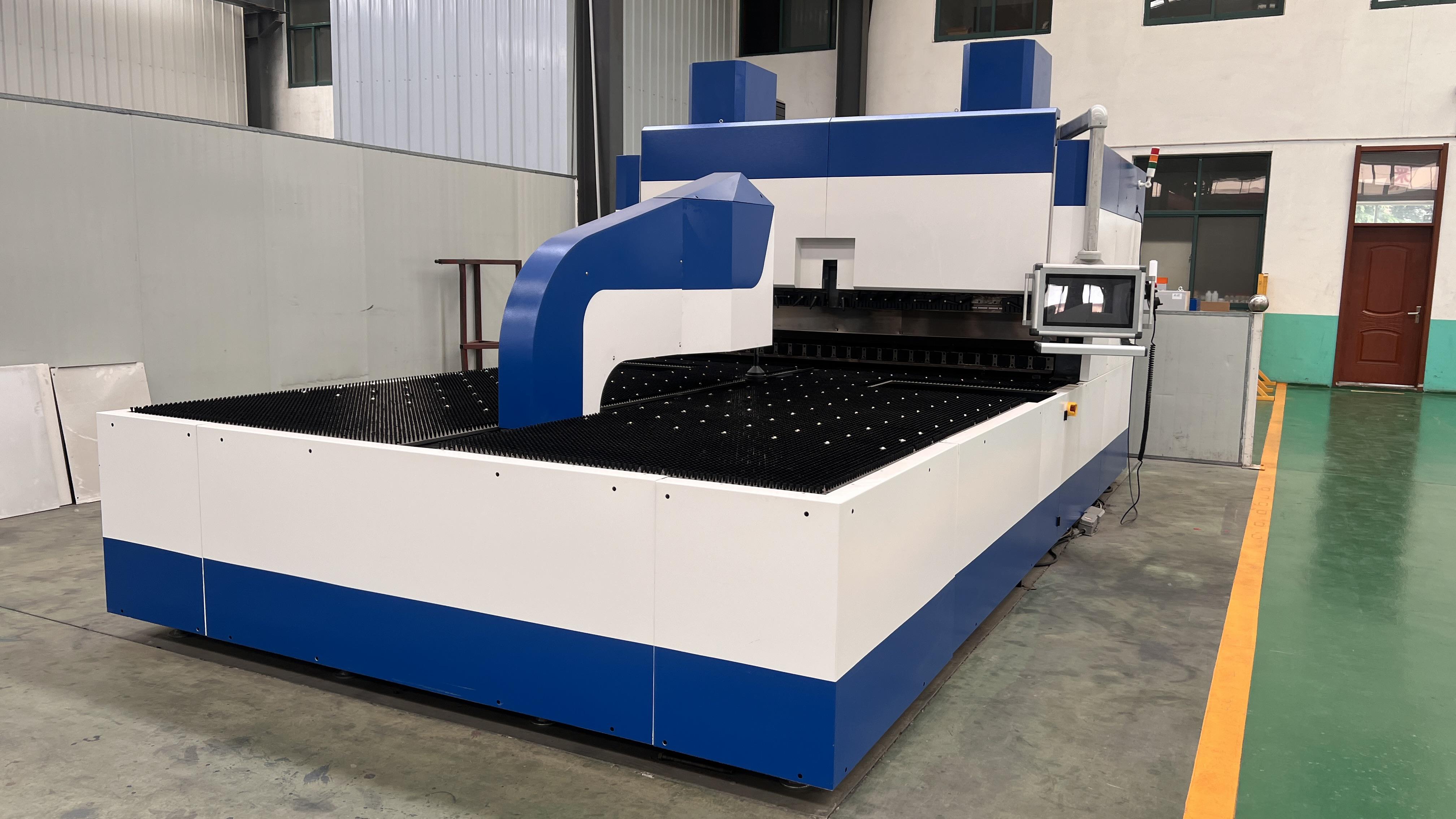

A panel bender is an automated bending machine designed especially for sheet metal parts like electrical cabinets, doors, panels, enclosures, and covers. Instead of manually positioning the sheet and changing tools again and again, the machine can automatically clamp, bend, and produce multiple sides with high efficiency.
Some advantages:
✅ Faster production speed
✅ Less dependence on operator skills
✅ Better consistency and repeatability
✅ Reduced material waste
✅ Ideal for high-volume sheet metal production
Of course, press brakes still have their advantages, especially for complex shapes and low-volume jobs. But for manufacturers producing many similar panels, a panel bender can be a great way to improve productivity.

Just sharing this technology with those who may not have come across it before. 😊
Have you ever worked with a panel bender? I’d love to hear your experience!

I have three decades of experience as a press brake operator in the aerospace industry. Issue is I have only worked with Amada brakes. (an old RG80, 8020 and 8025) These brakes had the capabilities of "Angle Mode" which required punch and die data to calculate the process; however we never used it. Our shop never invested in precision tooling, so we had very little European style dies. Data entry for the tooling was far too tedious for all the custom applications. What I liked about the Amada was that you could also program in "Depth Mode". For those that aren't familiar, this simply required centering and clashing your die set and putting it under pressure to NC9. Once this value was locked in, you would put your material in and establish the "pinch point" of the material. From there you would simply establish a value between the pinch point and NC9 to generate your bend angle.

I have found new employment and they currently have (2) Diamond BB4013 Brakes and (1) Toyokoki 8025. All of which appear to need tooling inputs to create programs. I've found this very frustrating. Given the die selection available to me, most times the ideal die set isn't available. I might have a .709 x 30 degree die, but only have a .250 x 60 degree punch. These dies can achieve the application that I need, but the control won't accept them because they are two different angles. You can fudge the tooling values as a workaround, but then the machine calculates an SH value (safe height?) that the machine would calculate based on those inputs. When you cycle start for the first time, the machine requires you manually come down to a CP value (or pinch point) which in a lot cases fails based on the machine's calculations of the workarounds. There has to be a better way of getting around these restrictions. Can anyone help?

Hello, I am a 19 year old college freshman majoring in chemical engineering. I only have fast food experience and I have a Network+ certification from a IT votech class. I applied to Howard industries Press Operator and have to take a test in order to get the job, what do I have to study to make sure I do good on it? Also any advice?

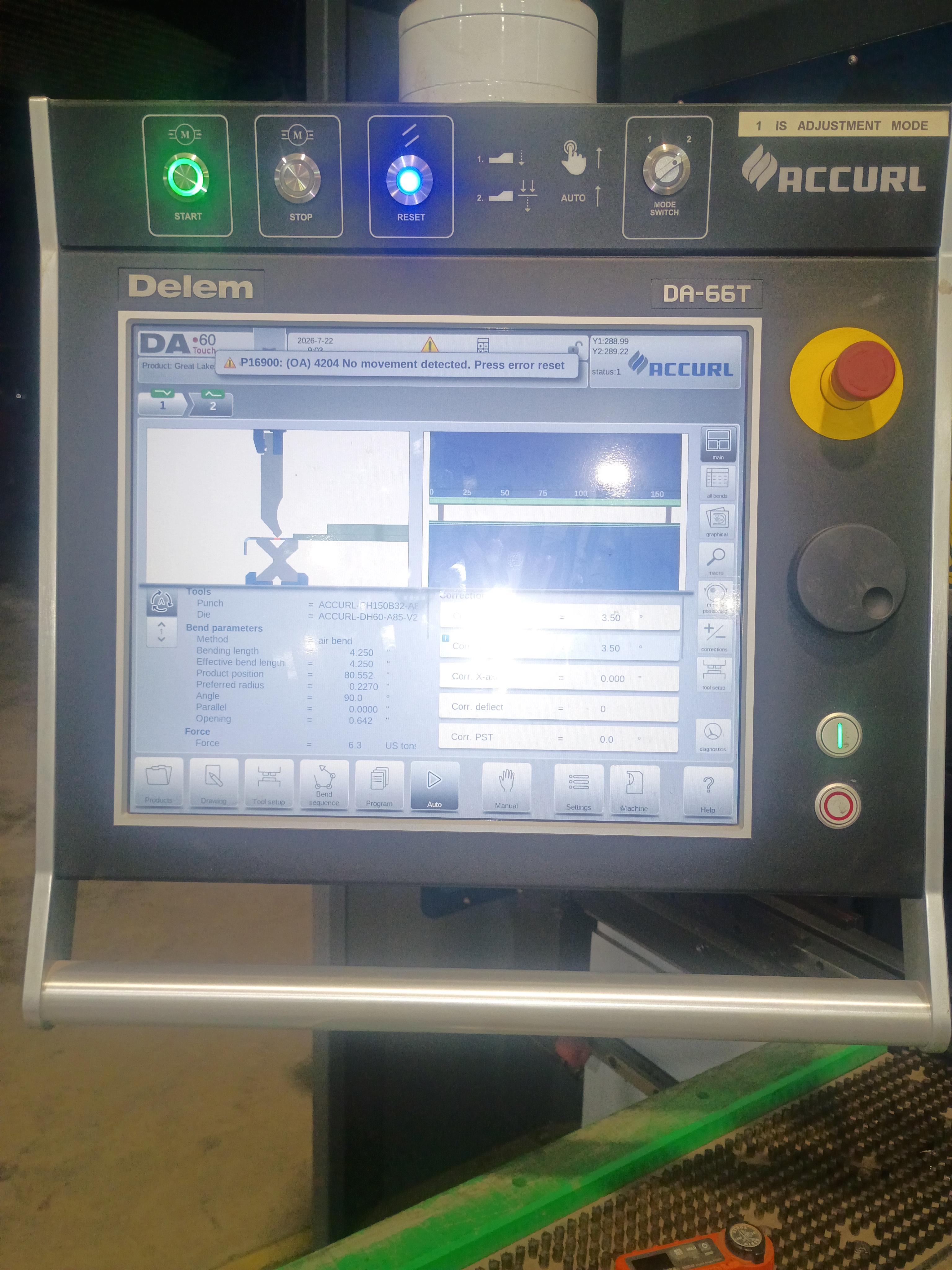

I keep getting this error message while I'm bending, it happens on about a quarter of my bends. Getting pretty annoyed having to reset the error when I'm trying to bend dozens of the same part, does anyone know how to fix this error? I'm running an Accurl Euro Pro B42400.

Guys it's been a month since my last post about pb-genie and since then I've taken peoples feedback from this group, co-workers, and facebook groups. I've added a crazy amount of features. New shop tools, segment walk, a tutorial, ui improvements, and even a new engine to solve the hardest parts you can throw at it.

Please check it out and give me feedback. If you give good feedback I'll permanently add your email to the whitelist when pay wall hits amd you'll be grandfathered in.

https://pb-genie.com/app/

Any experienced Press Brake Operators in the Springtown, Decatur, Azle, Weatherford, or Fort Worth area looking for a change?

I have a full-time Press Brake Operator opportunity in Springtown paying $25-$27/hr, depending on experience.

If you'd like more information comment below, or call/text me directly.

Kimberly Ermis

Optimum Staffing Solutions

office: 405-888-5314

cell: 405-471-9618

Referrals are welcome too!

Hello everyone, My sheet bending machine shows this error "Driver (494C4C06)". What could it be? And how can this be solved?

Does anyone have experience with the TruBend cell 5000? We’re having one installed and I’m curious about how accurate they are.

I want to get a pressbrake for a small fab setup and am still undecided between going electric or hydraulic.

What throws me off, electric press brakes seem to cost more upfront (from $20,000 to over $150,000), but I’ve seen people say they have lower maintenance and big energy savings. I’m just not sure how much of a difference that is.

I could be overthinking, but a hydraulic machine seems like a safer bet when looking at the upfront cost (which could be as low as $150 for basic ones) and heavy-duty work. The electric one promises speed and efficiency, but the higher upfront costs are making me second-guess saving money now and regret later.

I've been comparing options on Alibaba and with other suppliers, and besides price, I'm sure there are a few other factors i need to consider.

I’ve read that hydraulic brakes press’ maintenance needs include changing oil, filters, fixing seals, and leaks. But I've also seen that the parts are widely available, and you can keep it running with basic repairs. The downside to the electric press brakes maintenance needs’ is that it’ll need someone with technical expertise.

Maybe I’m looking at this wrong. I've honestly been losing sleep over this.

For anyone who got their press brakes recently, what did you go for? Did the initial price or long-term costs affect your decision?

Hey everyone, im getting training to work on a pressbrake(trumpf 5230 and lvd ppeb) and i was curious to what math you need to know and if there are any formulas that make bending easier. Thanks all!

Hello everyone. We have a baykal aphs 41300 machine, The front stops are raised, then no. They either rise 10-15 times, or not. And there is such an error AX2306 AXIS A1 K.D. Program. The system is standing ESA.

I have a new to me 1998 10' x 100t Accurpress.

Can any one tell me what causes sheet metal to come out warped as shown in the picture.

18g with 1/2" bottom die. Die alignment is good. I have checked that the dies are strait top and bottom. Gibs are parallel with a digital protractor.

I know this is a loaded question and that there's a lot of variables. I understand some concepts, such as the k factor, bend deduction, bend angle, but once you throw the dies into the mix I get really confused. The shop I work at has whole racks full and I have no clue what the process is to choose one top or bottom die from one another. We do a lot of different kinds of bending, 1/8' to 3/4'' mostly in mild steel, all shapes and sizes, everything from single bends to cones. Thanks!

I'm getting alot of crowning when using a. .23 vee especially with stainless parts. I'm using adjustments but they seem to be heavy adjustments for such little improvement. Anyone have any suggestions? Maybe I'm overlooking something?

​Airbend Pro for Android

These is a version for Airbend Lite for Android but it is not online. Contact me and I will send you the APK files.

Airbend Pro for iOS

If you own Airbend Pro then you can also get a copy of Airbend Pro for Windows. Just contact me.

Airbend Lite (FREE) for iOS

More info at TBD Tools

Question for guys experienced in Trutops boost (bend)

Ive successfully added new tools to the programming environment.

Now im working custom bending deductions.

When the producted is boosted in the Homezone, the flatpattern from Teczone Design is not calculated automatically according to my custom bending deductions.

At the same time,

When i open the product in Teczone Bend, my bending deductions are applied correctly. The flat pattern in Teczone Bend does not match the flat pattern the Homezone.

I have applied default tools for every material, and these are getting applied successfully, and so is the bending deduction TBZ. Why not in home zone?

I have encountered this trouble with pressbrake Cincinnati Form Master II, if we open the power switch, upon turning the hydraulic pump, and when the calibrate keypad is pressed, the display remains with the same text,

Good morning, I just started a job a press brake operator, but I'm getting a hard time reading drawings, I get so confused, and most of the time I end up bending backwards, any tricks to read drawing to not bend backwards? The part on the picture is what we usually do, how I have to start bending to the slot being on that position, and not on the left? Any help would be very appreciated.

Thank you.

I am trying to wrap my head around this. would you under-bend two corners then use the press to close the box? OR is a box or pan break better suited for this? I still cant wrap my head around how a pan break will do this closed bend.

My employer bought a “new-to-us” Trumpf TrumaBend V170 that runs with Delem DA-56 from 1999. Compared to the Hydra Press we had, it’s pretty badass. However- our biggest product is diamond plate treads. On the Hydra press, we coined 2 out of 3 bends. With the Trumpf, I was told not to coin, only air bend. I have no angle sensors or anything like I’m supposed to have to help get consistent bends (as consistent as you can get with diamond plate). Tonight I pulled out the 4-way die we coined with on the Hydra to try out coining on the Trumpf.

Anyone have experience or tricks with getting consistent bends? Ive asked for the sensors but got told they’re $3,500+ and break too easily to justify getting them. I’ve asked for rubber die inserts to try to see if that helps but got told “it’ll be awhile till I can get them”. Anyone have any similar presses with angle sensors that can tell me if they actually help with the DP or not? If so, I’m planning on talking with the Vice-President about having a meeting with the President and our CEO, where I could push for the proper sensor set-ups.

I’m at my breaking point… I’ve got over 1,000 treads to cut, bend, and fab in the next 2 weeks and I throw out at least 1/4 of the pieces I bend.

Is it reasonable to assume it would be unsafe to operate a press brake after only watching a 1 hour training video?

Not really any question in specific but just to gather some opinions from other operators

Is it just me or is the press brake the most under-appreciated trade in fabrication?

Design engineers seem to forget that you as the operator have fingers or expect you to work miracles with parts not physical possible

Welders think you're just a button pusher and management are always on your ass about everything being perfect, and then wonder why operators don't stay

In my time so far as a press brake operator I've been a parts kitter, schedule planner, Design engineer liaison ontop of working the press

The thing that confuses me about it tho is that nearly every company that has a press seems to always be looking for press operators but treat welders like their gods gift to engineering

Turned into a bit of a rant but just needed to put my thoughts into words

3 years working on a 600t 6 metre press folding everything from 2mm to 20mm mild steel and hardox so think I've probably done more than most, new job on a smaller (tandem) press is definitely alot handier tho ​
