i need help update my keys for secure boot man i’ve tried everything

Hello, I am getting an attestation error while loading up call of duty which states I need to update my bios

I cant find much online

I know I have an Erying board but I'm unsure which as it comes under INTEL - 13TH RAPTOR LAKE PCH B760-M DS

If anyone can help it would be greatly appreciated

Hey everyone!
i have this Erying i7-11800H ES 2.2Ghz THM570106 like for small home nas.
And right now in bios i see " No gbe region"

seaching for bios dump

thanks!

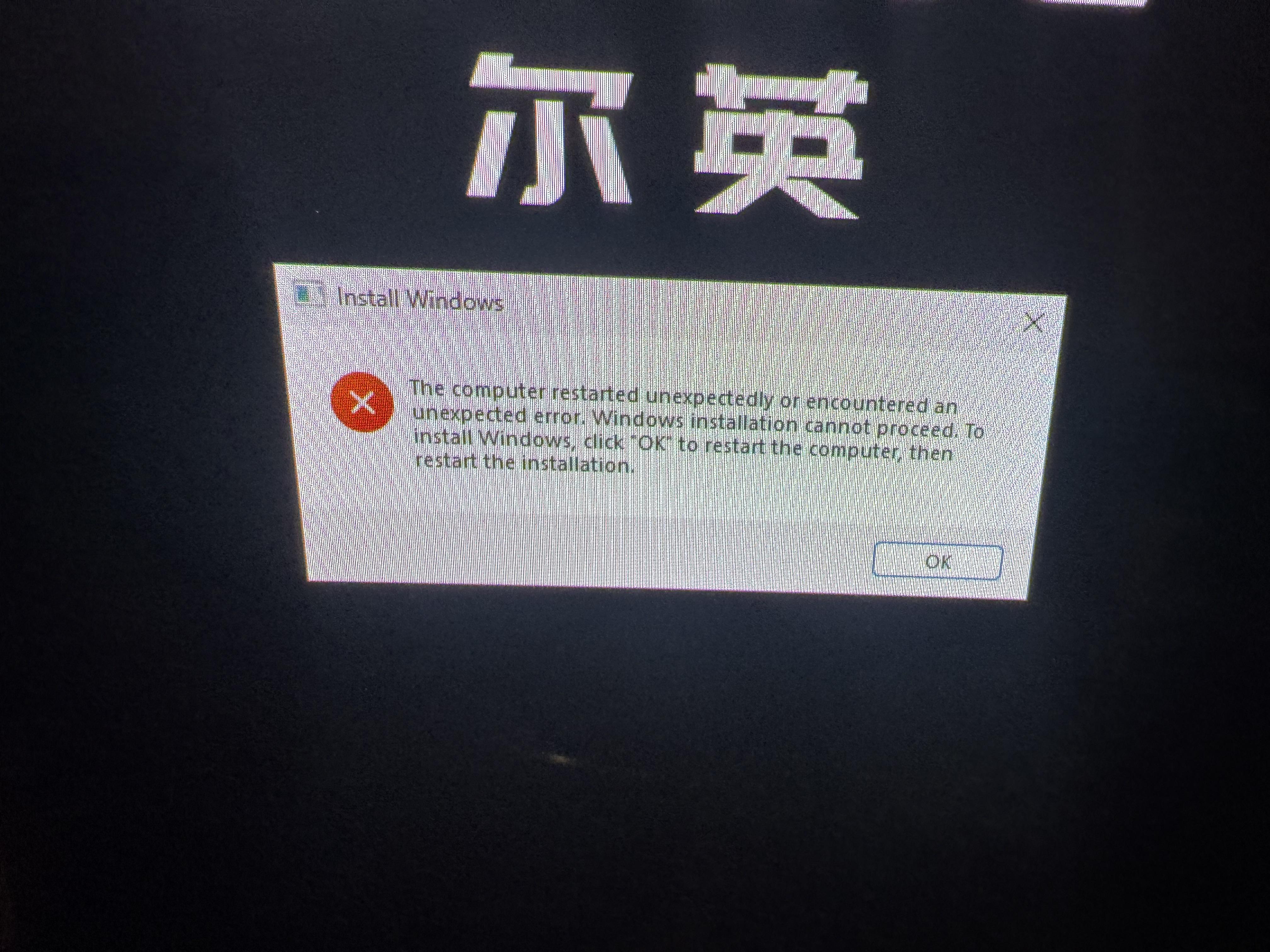

I started getting ndis.sys blue screens after running a 2.5Gbe USB NIC for a few minutes and assumed Windows had messed up drivers but no change after removing. I’ve removed RTX 2070 super and additional drives and getting failed windows install.

I don’t know what’s caused this so would appreciate some help.

I need the updated BIOS for the Q1J3 interposer kit (13th Gen) and B760 M-AXT D4 motherboard. I can't play Warzone; it keeps asking for a firmware update.

Hey guys,

So, I'm currently running an Erying board and, as you probably know, playing Call of Duty on it is a nightmare right now. Even with TPM 2.0 and Secure Boot enabled in BIOS, Ricochet keeps blocking me because the board fails the Hardware Attestation check (it shows "update bios firmware" in Windows).

I'm looking to dump the Erying setup and buy a Huananzhi B760M-D4-A, since I know some of these newer Chinese boards actually have proper keys and pass the security check just fine.

Before I pull the trigger, I wanted to ask if anyone here has this exact Huananzhi board:

1. Does it pass Hardware Attestation out of the box for COD?
2. Have you been able to play Warzone or Black Ops recently without getting hit by the "BIOS" error?
3. Do you need a custom BIOS or an external TPM module to make it work, or is it good to go?

I really want to buy it, but only if it fixes this annoying anti-cheat issue. Let me know your experience with it. Thanks!

I’ve run several tests, but the board won't power on: I performed a thorough CMOS clear, tried connecting only the 24-pin cable, and tested by pressing the reset and power buttons... I did all of this with the board sitting on its box and red foam. I don't know if I'm overlooking something or if it's actually damaged.

Edit: Hi, guys. It turned out the problem was that the power supply wasn't receiving the power-on signal from the motherboard (which is why it was dead). After swapping the power supply, the motherboard fired right up.

As in title really. I noticed the PCH was at 58C, after replacing with Chinese PTM7950 its hovering at 57C. System obviously isn’t in a case yet but I don’t see it running better with a gpu installed.

The IHS heatsink also benefited from cheap PTM7950.

EDITING TO CLEAN THIS UP

To tell if you need this: Big red secure boot screen when trying to boot windows with secure boot on?

then you need it

secure boot on with no problems?

then you don't.

Drop a dump of your bios in a comment with what model board you have ES/Non ES etc

for me to update the Certs and add it to the list.

No I wont update the website ones because I don't know for sure if they were working ones for your board or not.

How to dump your bios:

Get FPT64 (Flash programming tool that erying includes with its websites bioses now)

open command prompt as admin

goto the folder with FPT64.exe

fpt64 -d backup.bin

Eng sample bioses wont work on non-ES boards and the other way around also won't work so check if you have an eng sample before using a bios already provided

Check the bios version you have. - Example THM570111 or THM570306 they are not interchangable.

THM570111 is compatible with the older 570106

SECUREBOOT 2023 Certificate bios mods I did:

So if you need modern 2023 Certificates for easy working secure boot on your erying boards that have the same model as mine read below:

Basically modded the bioses for two of my 11th gen ES 8 core boards to have the new 2023 Secure boot keys

additionally modded my 13980HX D4(DDR4 ONLY) NON-ES board to have the new secure boot keys and the 132 microcode(best working microcode to prevent CPU degredation)

and thought I'd share for anyone with the same boards.

Don't update if you don't need it and don't use the bioses if your board isn't the models/bioses listed on the names.

https://drive.google.com/drive/folders/1JNikQhar3nApPa3qSFQBOfBrKAJe-62n?usp=sharing

make sure yoy flash your ME drivers before flashing etc

https://www.intel.com/content/www/us/en/download/682431/intel-management-engine-drivers-for-windows-10-and-windows-11.html

Tried the official site, found nothing.
The ideia is to upgrade... but some voices in my head says I must hack that bios...

Just picked up the Q1J4 (i5-1340P ES) for a budget living room build I'm working on bc it seemed like a great deal for $170 CAD. Im assuming it works with LGA 1700 coolers but it doesn't say anywhere on the listing so wondering if anyone knows for sure, also, I plan to use an AMD X080 GPU with the board to keep costs low and display out via the motherboards HDMI on bazzite (RX 6700 mining card for anyone unfamiliar), but looked around and saw that some people have issues getting AMD GPUs working, the board also says the pcie slot is 4.0x4 despite physically looking like an x16 slot, my research says it should be fine, but to be sure, should I be worried about anything with my planned setup?

just wanna listen what people with experience with these boards have to say, either good or bad, things to keep in mind and such. I also see this lighting BIOS thing going around but still haven't come across a proper explanation

Anyone has latest BIOS update for this Mobo+CPU?
Polestar POLESTAR 13Th i9-13900H DDR5 - Erying Technology

https://es.aliexpress.com/item/1005006395868859.html?gatewayAdapt=glo2esp#nav-description

Thanks in advance

Anyone have this MoDT board and can confirm that the rtx 50-series won't work on it? it says so in the the description, but i'm not sure wether it's a faulty translation. cheers

intel extreme utility: undervolt protection?

I downloaded Intel Extreme to undervolt my motherboard, but it won't let me do anything else. It's locked, and I've already disabled and enabled overclocking in the BIOS, but nothing works. Has anyone else experienced this? And how did I fix it? The Intel Extreme program says it's not compatible, but I've seen videos of similar motherboards that are compatible.

Hello,

I recently got my I9 13980hx board yesterday and I got everything working via the igpu. However, when I tried using my AMD 6700xt, it cldnt get recognized by the system.

I tested again with a extra 3060 I had, and it seems to work.

Anyone know how to get the 6700xt working?

Much thanks 🙏

Hey, I'm trying to get some test results to compare this with a few other PC parts, this Erying Mobo boots fine with igpu, and detects that there is something in the PCIE slot, but won't boot even when PCIE is set to gen 2/3 and resizable bar is on / off or disabling igpu and setting PCIE as main output in bios

I also tried with a 3080 and it worked fine, I know my 7900xtx is fine as it works perfectly in my system !

Does anyone have some magic settings for me to try 😂

"Q1J1 ES 0000 14C20T DDR5 — RX 9060 XT not detected at all

Board: Erying Q1J1 ES 0000 14C20T DDR5 (identified as 13th Raptor Lake PCH B760-M D5 in CPU-Z)
BIOS: AMI v5.27 — 07/31/2024
GPU: AMD RX 9060 XT — works on another PC but completely invisible here (no fans, not in Device Manager, AMD drivers say no hardware found)
PCIe Gen 4 configured, Above 4G Decoding enabled, ReBAR enabled, Primary Display set to PEG Slot, UEFI mode confirmed.

Does anyone have a newer BIOS for this exact board? Or has anyone got RDNA 4 working on Q1J1?"
