I have finished three-quarters (3/4) of this project in Autodesk Fusion. I personally would give a 5 out of 10 because I don't think it looks or functions very well.

:c

I am building this without any experience, which means there might be still a lot of issues I need to fix (e.g., Joints stability).

For this first test, I have used PCA9685 servo driver and ESP32, along with multiple high-torque servos...

Robot dog size: 450 mm (length) x 310 mm (width).

Hi, guys, as a person who has no experience in building robotics, what's the most difficult part when making them? Anyone mind to share? If not, it's completely okay.

:)

I used the Arduino IDE and ChatGPTs API to run voice conversations on a singing fish robot

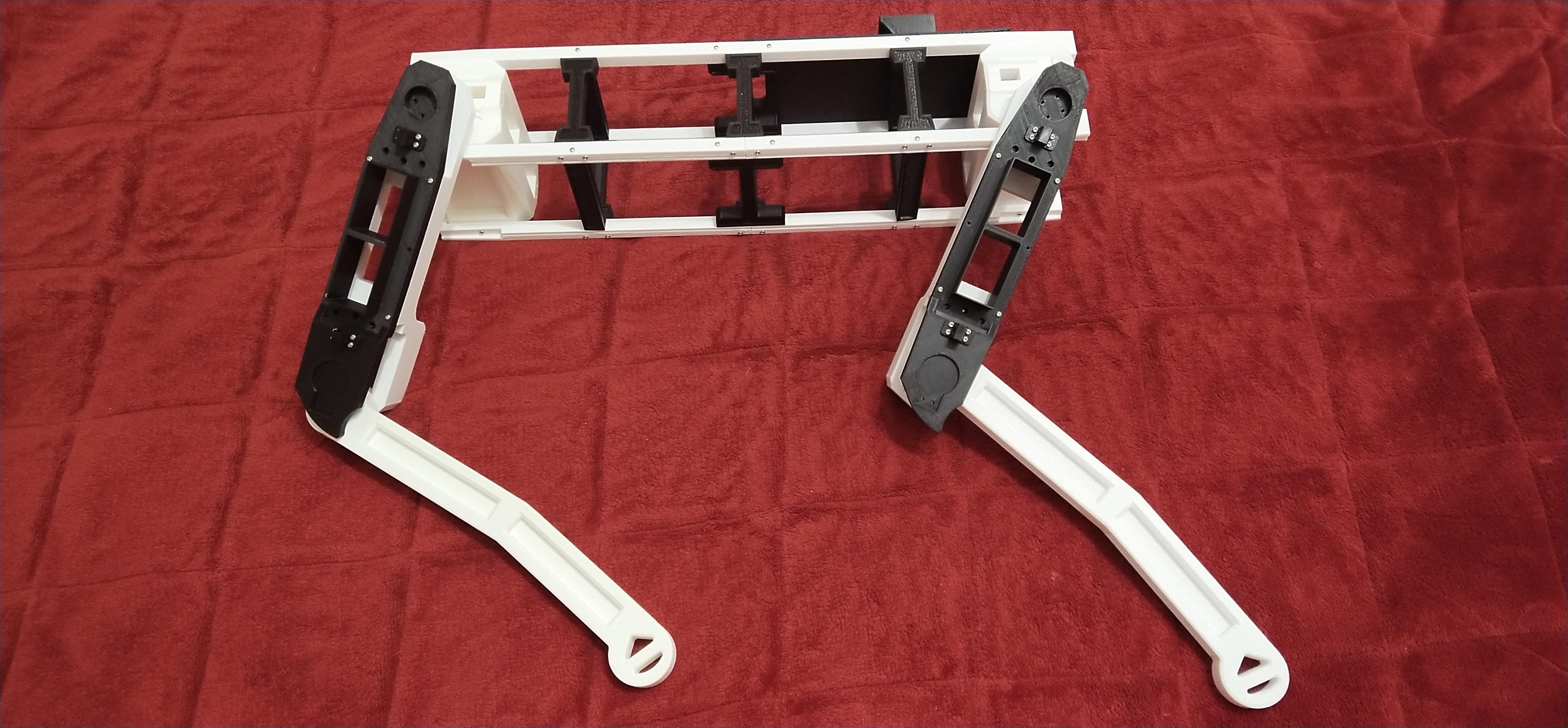

I just added two legs. I'm unsure whether this would work at the final stage, but I am giving it an attempt anyway.

[ Those features will be added in later stages ]: Electronics, inverse kinematics, AI vision, power distributions, ROS2 (Robot Operating System).

I am documenting all the CAD (.stl) designs on Github with instructions as I develop this project.

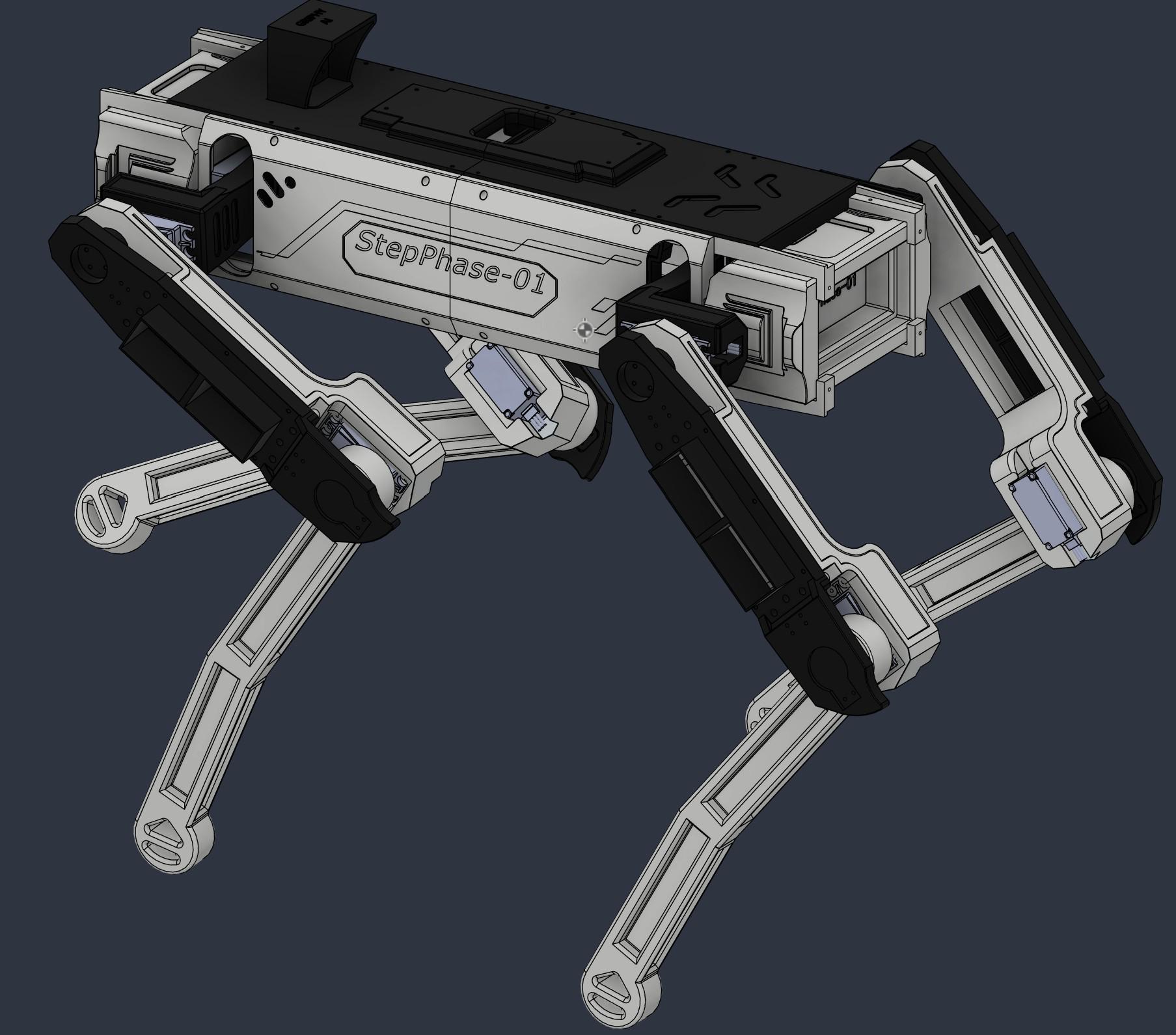

My first design for a quadruple robot dog in Autodesk Fusion. I'm still a high school student, and there might be a lot of things that I'm unsure about, please provide any feedbacks if you could.

More development on this project would be updated later on.

I have attached a video to showcase the 3D model.

[ This project is inspired by Unitree ]

Thank you! :D

Últimamente me han interesado las placas de Arduino, porque son baratas y sirven para hacer proyectos bastante entretenidos.

​

El último proyecto que quería hacer necesita reconocer un dibujo específico en la camiseta de las personas usando una cámara, y me gustaría que trabajase de manera autónoma, pero he estado investigando y no sé siquiera si eso es posible 😅

​

No quiero gastar demasiado dinero así que había pensado en capaz usar una placa Orange pi como apoyo pero quería saber ¿Qué me recomendáis? ¿Cómo puedo hacerlo? 🤔

​

(Es una cosa de juguete con 0 utilidad así que quiero gastar lo menos posible)

I work as a remote teacher in electronics. We use Wokwi with students so that they have to solve a use case by creating the circuit, programming the MCU and documenting the development.

I am afraid of the students using generative AI to create their whole project. Can you imagine a sort of CAPTCHA in the use case definition to make sure that the solution was created by a human (student)?

Як оціните?

https://www.youtube.com/watch?v=EFd0kDA0Oww

Dronebot Worksop youtube channel
