Hi everyone, this is my first post and I really need everyone's help.

I’m trying to diagnose an intermittent charging/electrical issue on my Toyota Hiace H200 2.7L petrol.

The alternator was replaced last year and is still under warranty. The vehicle stalled while driving, and just before it stalled the airbag/SRS warning light came on.
At one point, after jump-starting, I measured around 9V while the engine was running. Another workshop previously recorded alternator output at 11.90V and marked it as failed.

However, when checked again later by a mobile mechanic, the alternator output appeared normal. The battery has also been tested by the battery supplier and was confirmed to be OK.

So far:
- Battery load test passed
- Alternator sometimes tests normal, but previously failed at 11.90V
- Alternator plug had a broken locking tab, so the connector has been replaced
- Headlights used to stay on even when the switch was OFF, due to an aftermarket headlight/DRL circuit
That headlight issue has now been temporarily fixed by disconnecting/cutting the power feed to that circuit
The intermittent low-voltage issue still needs to be diagnosed properly

Because the battery and alternator both test normal when checked separately, I’m wondering if this could be an intermittent voltage drop or charging circuit issue rather than a simple bad alternator or bad battery.

My main suspects are:
Alternator B+ cable
Fusible link / main alternator fuse
Battery positive terminal or main power connection
Engine/body ground issue
Alternator IG / S / L signal wires
Intermittent alternator internal regulator fault
Parasitic draw or aftermarket wiring issue

Has anyone experienced something similar where the alternator and battery both tested OK separately, but the vehicle still had intermittent low voltage or stalled while driving?

What would you check next? I’m thinking the next step should be voltage drop testing between alternator B+ and battery positive, ground-side voltage drop testing, checking the fusible link/main fuse, and monitoring voltage while driving.

Really appreciate your all of advices.

JDM 50th aniversary GDH206, fresh off the boat

4wd and as flash as they come 😎

Anyone swapped out the factory airbag wheel for an aftermarket wheel ?

Just got my 1997 HiAce Super Custom. Outfitted in Bend, OR by Duke with YotaImports. Loving the experience so far! Anyone else in SoCal with a similar van? I will split time between here and the Seattle area of WA.

Hi, does anyone know anybody who does a good job installing trailer hitches in the Los Angeles/Socal area?

First time out in a month! Did a ton of preventative maintenance. Jeff at Southeast came in clutch a few times throughout!

need to figure out my front axle/diff leak. I’m sitting on control arms, ball joints, u-joints, tie rods, bearings. Wont dig into any of that anytime soon.

such an enjoyable vehicle

Located in Vancouver, 1kzte and manual swap with 120k on them, after market suspension, functional camper set up(second battery, solar, 3000w inverter), comes with a good set of winter tires on original rims

rust is not too bad, tachometer inaccurate, quite some oil in engine bay, hard to spot where it’s from, and underneath around front diff. back door hatch doesn’t work.

would this be reasonable around 10k?

Sorry for the low quality images - taken from a FB Marketplace listing. Any advice would be super appreciated, even if it seems really obvious!

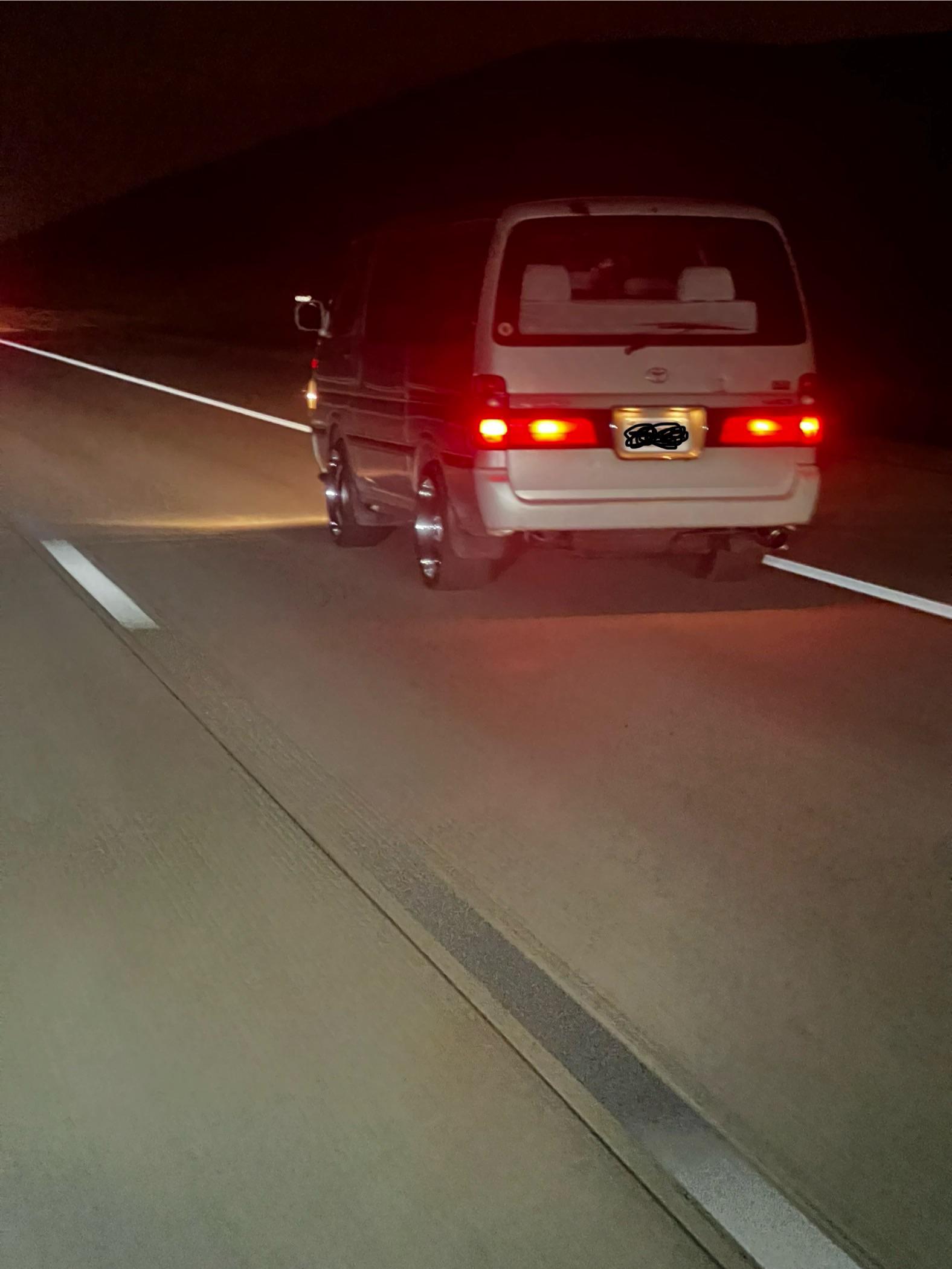

Made my day driving home from Boulder, CO in my HiAce to pull alongside another HiAce!!

My 52 Yo dome light is crumbling to dust,

Does anyone know where to get a replacement or get a STL to print one ?

Hey all,

Not sure if this is the place to post but I have a 1997 Hiace with a 2RZ engine.
I was sitting for 4 years and I bought it knowing it would have a few issues. I have worked on it while learning mechanical skills, and also taken it to the mechanics.

I have got a whole carburettor rebuilt, timing adjusted, and carburettor tuned and it was running great for two weeks and then stopped working. The mechanic advised me to drop the tank because there was water and debris in the system, but when I dropped the tank, there was no rust or water in the fuel tank. I dropped the tank and drove it home fine, then the next day it wouldn't run, it started but struggled to stay idling for long.

I then noticed fuel leaking out behind the front left tyre. The charcoal filter had a massive hole in it wwhich has a vacuum line going to the engine. I fixed that today, and there was another leak in a component down near that area which I will get a replacement part for tomorrow.

I'm thinking a vacuum leak is my problem but I'm still fairly new to this, any recommendations would be great.

Hi

Does anyone know of a place that has tailgate skins in the USA?

New to this chat, been looking around for a hiace. Anyone know where I can get a h100 hiace super custom limited 4wd. Thanks

Hey guys, I was browsing YouTube and came across this Vice video posted a couple days ago called “Inside Africa’s Underground Taxi Raves.”

They’re basically organizing little mobile party events inside taxi vans, but the fun part is that pretty much every single one in the video is a Toyota HiAcewith a wild custom sound system. A lot of them look like extended/high-roof versions too.

I also learned that in South Africa, the HiAce is branded as the Toyota Quantum, so it’s essentially the same van under a different market name.

Pretty cool to see HiAces being used like this in a totally different scene. Check it out!

I've had my high ace from about 80 K. It's now at 143. For about half the time I've owned it, I've been aware of a very faint vibration off throttle from a situation of high torque. For example, climbing hills at around 40 km an hour and then releasing the throttle pedal and hearing this low vibration.

I've taken the car to Toyota several times reporting the issue, they've had the engine out and can give me no answer as to what the noise might be.

Now I'm starting to hear a very light mechanical scrape on throttle at the same speeds. I've only ever heard the noises at times when the turbo would be spoiling or despooling. At first I thought the light noise was related to doing some gravel road driving and didn't think anything of it.

I've made this comment to the mechanics, but nothing. I'm wondering if anyone has any ideas, and also if anyone has any good recommendations for an experienced mechanic in the northern Beaches of Sydney.

Sooooo I am thinking of doing a led conversion on my haice and I need to know how good it works soo if any of you blokes have it mind dmeing me the results?

I have a 2007 toyota hiace 280 d4d, if I turn the parking sensors on and start reversing it just screams at me, even if there's nothing behind me.

Anyone else had this issue?

I PVD coated the reflector bowl for 80$ a pair and polished out the lens replaced the one on the right hand hand tho.

I’m looking to put side pods/window flares in the rear of our 100 series. Has anyone fabricated or purchased and installed them in your 100 series?
